Sample Skatepark SM005

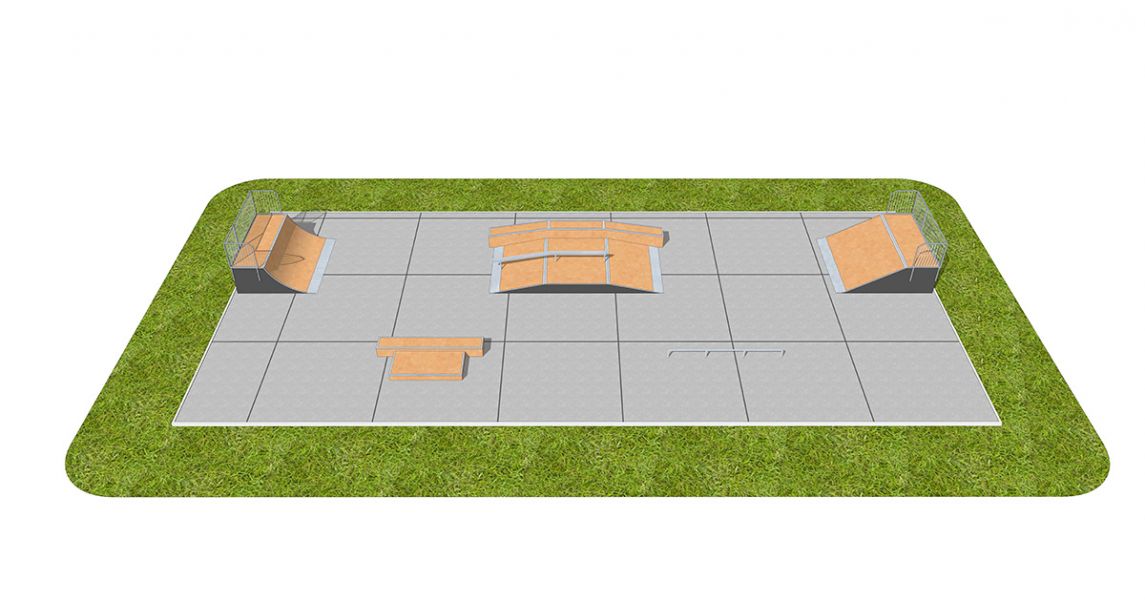

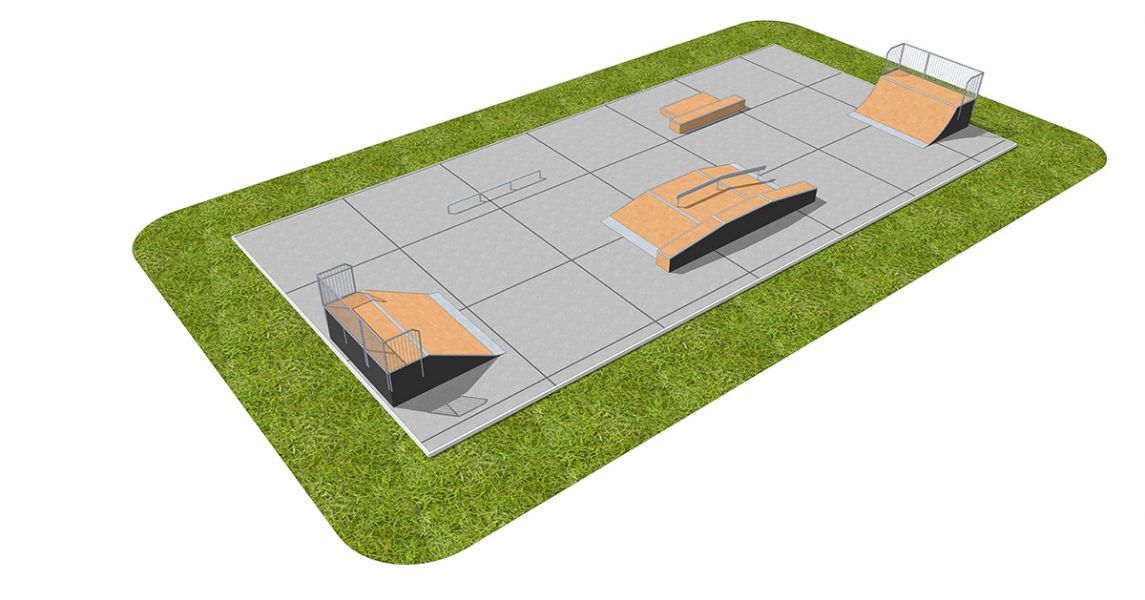

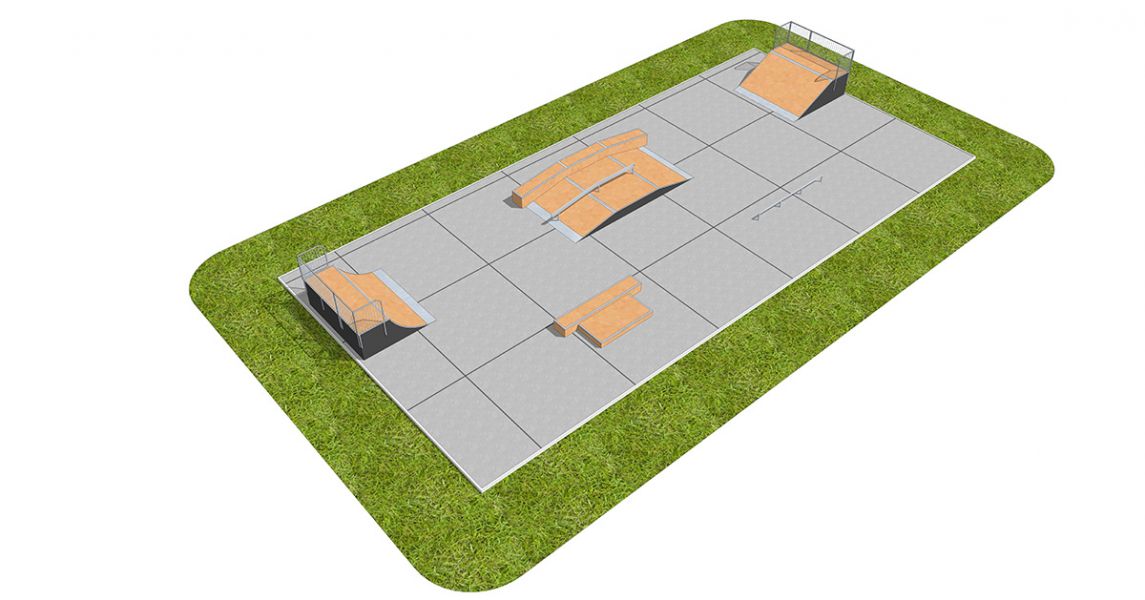

An extensive modular skatepark designed for medium-sized and larger urban squares, sports centers, and recreational parks. The centerpiece of the design is a massive, 7-meter central funbox, complemented by 120-cm-high entry ramps (bank ramp and quarter pipe) on both sides of the park. This layout guarantees excellent riding dynamics and plenty of freedom to practice for enthusiasts of skateboards, scooters, inline skates, and BMX bikes. Techramps’ modular technology ensures a durable, certified structure, quick assembly, and resistance to heavy use.

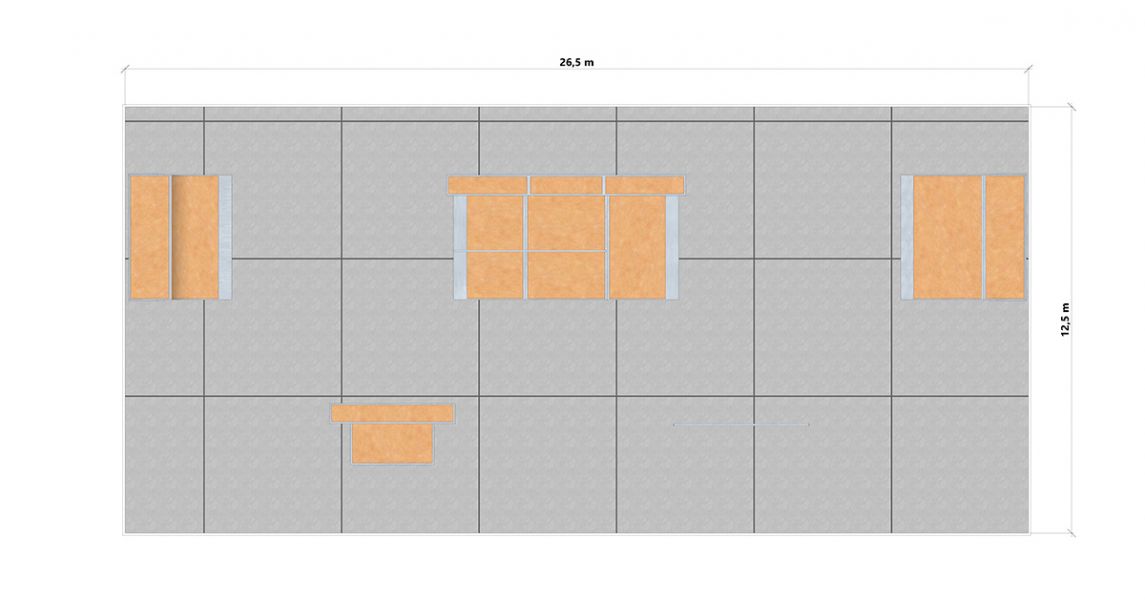

• Park dimensions: 26.5 x 12.5 m

• Intended use: beginners and intermediate riders

Obstacle configuration:

• Bank Ramp H120/366#1 (365 x 366 x 120 cm) – a wide, sloped ramp that provides a dynamic approach to the central obstacles and facilitates landing after tricks.

• Quarter Pipe H120/366#1 (300 x 366 x 120 cm) – a high, curved ramp with steel coping, allowing for smooth turns, transfers, and edge tricks.

• Funbox with 3/3 grindbox + 2/3 rail H45/366#1 (700 x 366 x 45 cm) – an expansive, long central element connecting the jump table, drop rail, and wall, creating versatile conditions for smooth through-tricks.

• Grindbox 1 + Grindbox 2 H25/40/367 combination (367 x 181 x 25/40 cm) – a two-level street wall with varying heights, designed for learning and perfecting technical grinds and slides.

• Straight rail H35/400 (400 x 5 x 35 cm) – a stable, low-profile rail, perfect for safely learning and refining balance during slides.
