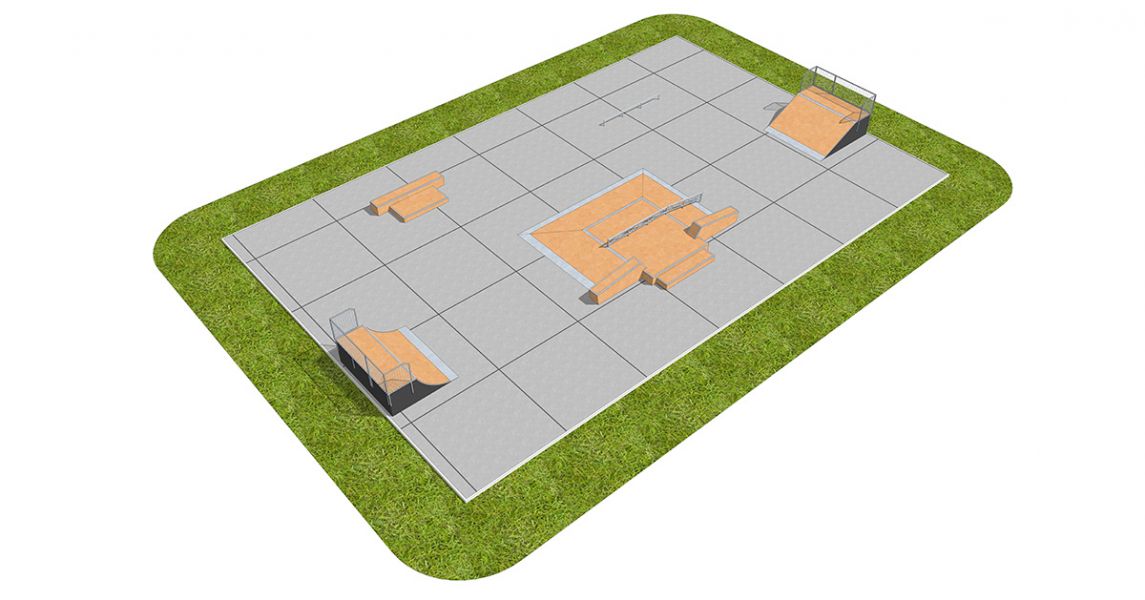

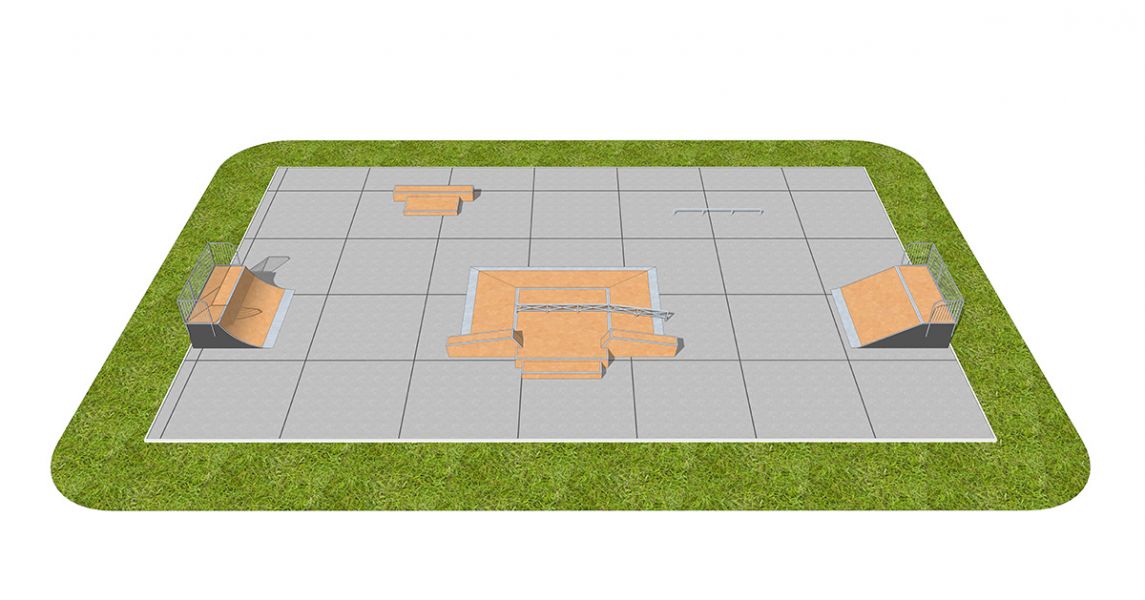

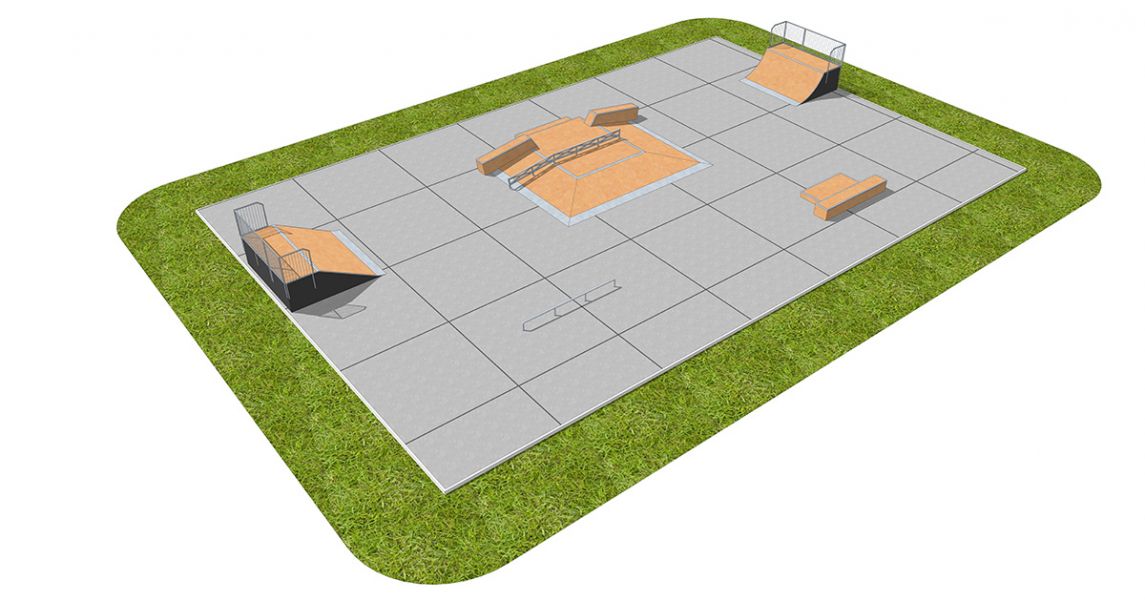

Sample Skatepark SM009

A modern modular skatepark designed for medium- and large-sized urban squares and sports complexes. The expansive central area, featuring a multidirectional Funbox and a pyramid, allows for seamless transitions and runs from various angles. Opposite, 120-cm-high ramps (Bank Ramp and Quarter Pipe) guarantee a dynamic takeoff and the freedom to build speed for riders on skateboards, roller skates, scooters, and BMX bikes. Techramps’ prefabricated modular technology ensures quick assembly, complete safety during use, and maximum resistance to changing weather conditions.

• Dimensions of the area: 28.0 x 14.6 m

• Intended for: beginners and intermediate riders

List of obstacles:

• Bank Ramp H120/366#1 (365 x 366 x 120 cm) – a tall, flat approach ramp for building speed into the central zone and practicing angled landings.

• Quarter Pipe H120/366#1 (300 x 366 x 120 cm) – an arched ramp with a steel coping, facilitating smooth turns, transfers, and technical edge tricks.

• Funbox with grindbox 3/1 + rail 2/3 + pyramid 3 H45/516 (670 x 516 x 45 cm) – a multifunctional central element connecting a jump table with an angled pyramid, a drop-in rail, and a wall, designed for a variety of trick combinations.

• Grindbox 9 H35/364 (364 x 144 x 35 cm) – a classic, wide street wall with a stable construction and a long grinding edge.

• Straight Rail H35/400 (400 x 5 x 35 cm) – a freestanding, low-profile rail designed for safely practicing balance and sliding tricks.
