Sample Skatepark SM020

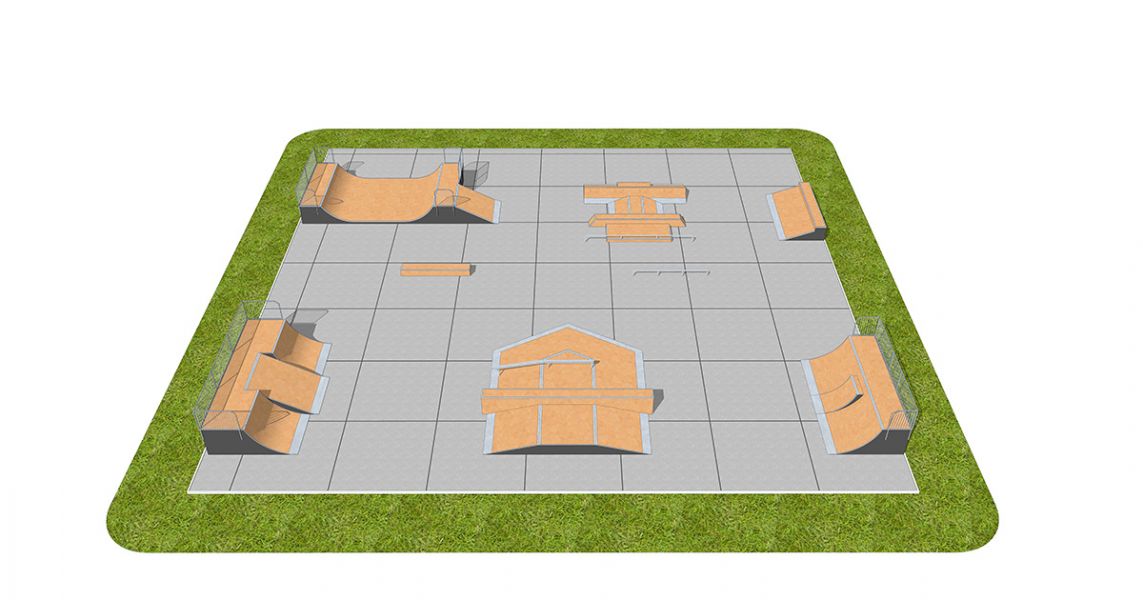

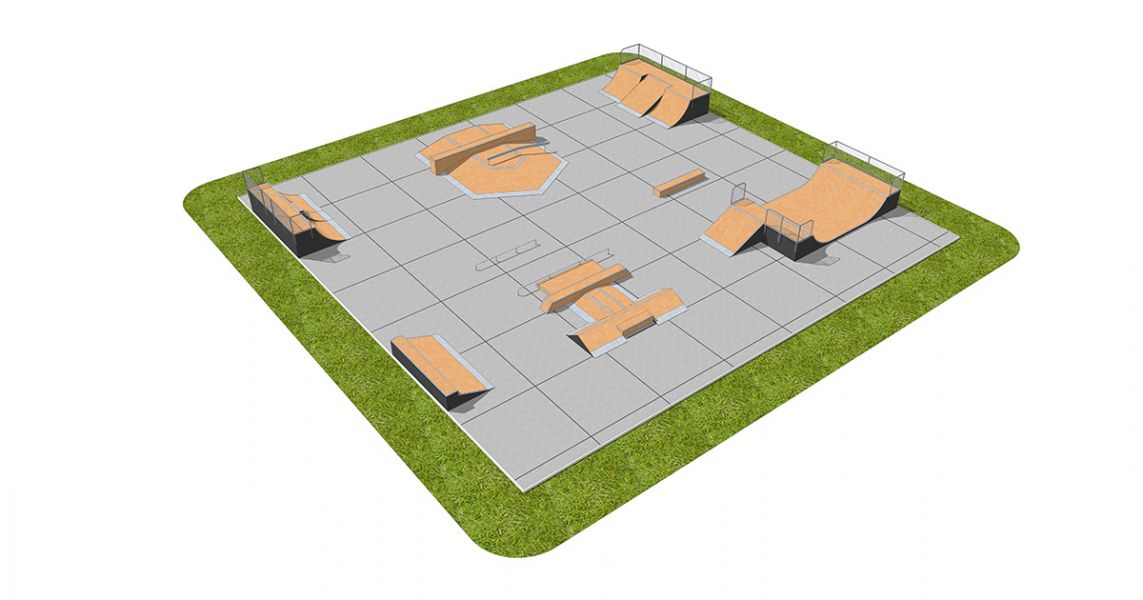

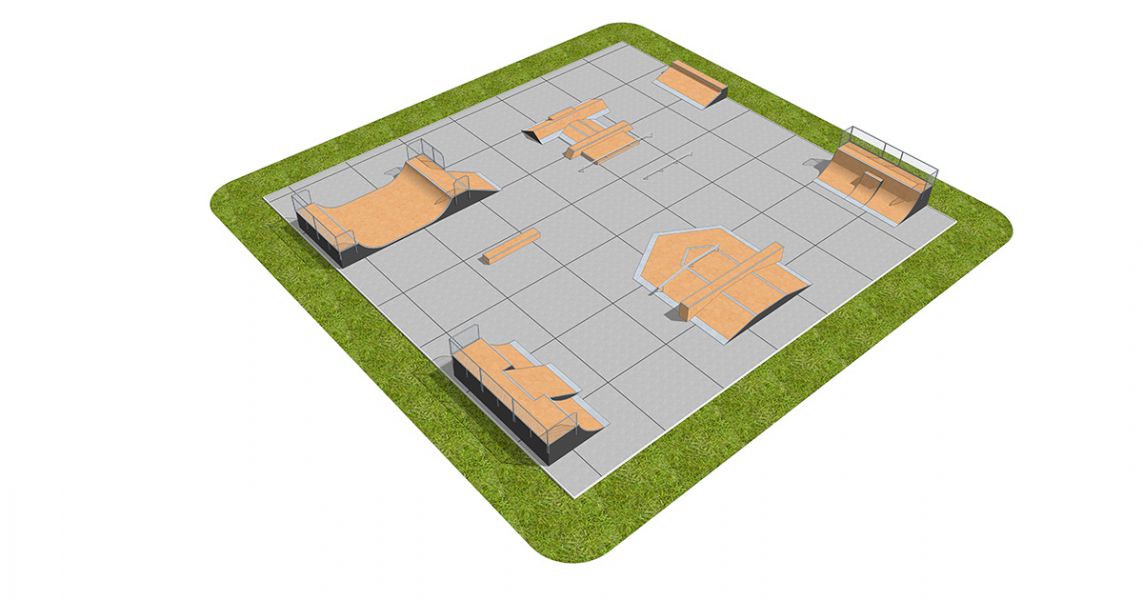

This monumental modular skatepark is an advanced sports complex designed for large recreational facilities and urban plazas with an area of approximately 850 m². The layout combines a massive transition zone with a miniramp integrated into a bank ramp, a giant central funbox nearly 9 meters wide, and an integrated street plaza area. Such a diverse and well-designed infrastructure allows for an infinite number of fluid lines to be created for riders of all skill levels—whether they’re on skateboards, inline skates, scooters, or BMX bikes. Techramps’ modular technology guarantees the highest level of safety, certified durability, and resistance to intensive use in varying weather conditions.

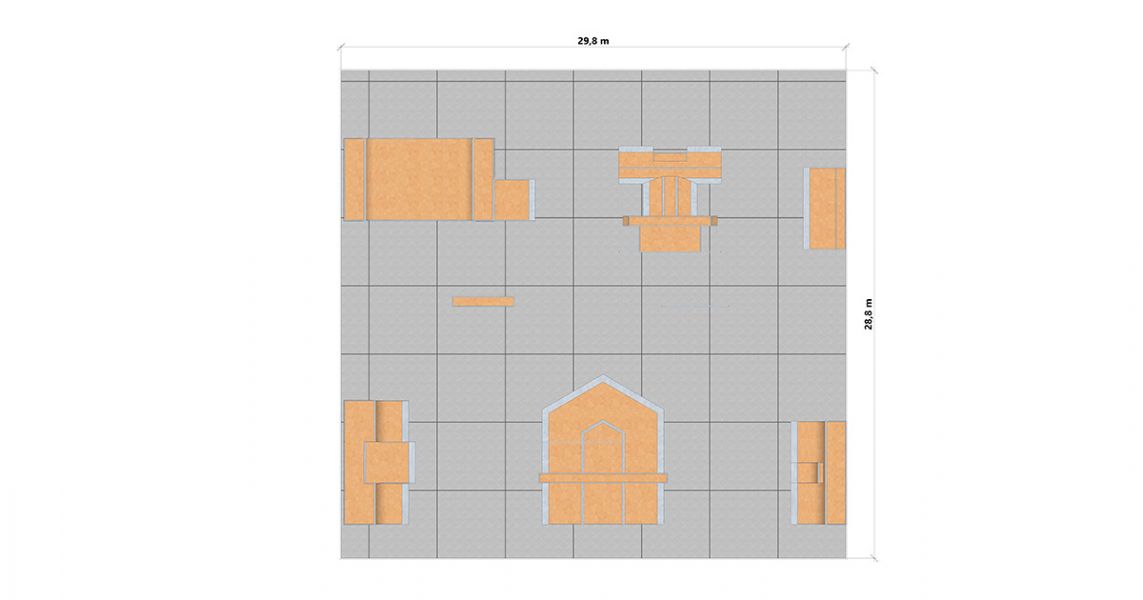

• Park dimensions: 29.8 x 28.8 m

• Intended for: beginners, intermediate, and advanced riders

Obstacle configuration:

• H120/488 Mini-Ramp + Bank Ramp (1129 x 488 x 120 cm) – a hybrid structure over 11 meters long, combining a classic mini-ramp for smooth riding through corners with an attached flat run-out, enabling a smooth exit and dynamic transfer directly to the rest of the park.

• Quarter Pipe + Bank Ramp + Quarter Pipe H150 (420 x 732 x 150 cm) – a very wide, integrated launch platform connecting two arched ramps separated by a flat run-out, offering versatile angles for building speed onto the central features.

• Quarter Pipe with Mini Quarter H150/610 (325 x 610 x 150 cm) – an asymmetrical curved ramp on the opposite side of the structure, ideal for dynamic turns, takeoffs, and tricks on the coping.

• Funbox with a 3/1 grindbox + 3/3 rail + 3/1 rail + 2 grindboxes H60/675 (720 x 888 x 60 cm) – a massive central feature nearly 9 meters wide, equipped with a jump table, double drop rails, and walls with various profiles, designed for advanced aerial tricks.

• Combination of Grindbox 1 + Grindbox 2 + Grindbox 14 + Funbox H35 + Rail H20/25/35/50/55 (607 x 628 x 20/25/35/50/55 cm)—a multi-level, expansive street plaza section integrating stepped walls, varied rails, and a mini funbox with several heights into one massive technical zone.

• Grindbox 12 H90/488 (251 x 488 x 90 cm) – a very tall (90 cm) and wide freestanding box, perfect for advanced jumps, technical manuals, and more challenging grinds and slides.

• Grindbox 2 H40/367 (367 x 60 x 40 cm) – a classic, simple street wall with a versatile height, great for precise slides.

• Straight Rail H35/400 (400 x 5 x 35 cm) – a freestanding, low-profile rail designed for safely learning and perfecting slide techniques on the rail.
